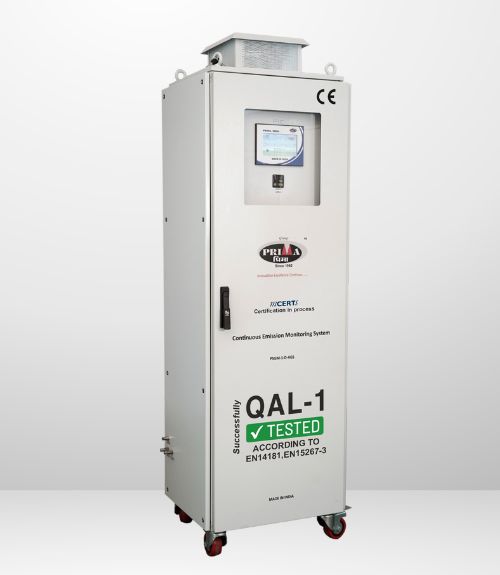

Send InquiryContinuous Emission Monitoring System
Price 800000.0 INR/ Set
MOQ : 1 Set
Continuous Emission Monitoring System Specification
- Operating Voltage
- 230V AC, 50 Hz
- Equipment Type
- Continuous Stack Gas Emission Monitoring System
- Automation Grade
- Fully Automatic
- Frequency
- 50 Hz
- Response Time
- 60 seconds
- Application
- Online monitoring of emissions in industries (Cement, Thermal, Steel, Power, etc.)
- Max Height
- Suitable for stack heights up to 120 m
- Humidity
- 0-95% RH non-condensing
- Accuracy
- 2% of measured value
- Display Type
- 7-inch TFT color LCD display with touch panel
- Number of Specimens
- Single point measurement
- Port Size
- DN65 (Customizable)
- Temperature
- -10C to +55C operating
- Interface Type
- RS232, RS485, Ethernet, 4-20mA Analog Output
- Resolution
- 1 mg/Nm
- Measuring Range
- CO, NOx, SO2, O2 (customizable, 0-2000 mg/Nm typical)
- Features
- Automatic calibration, Data logging, Remote monitoring, Self-diagnostics
- Gas Pressure
- 0.5 to 1.5 bar
- Mounting Type
- Wall or flange mount
- Test Range
- SO2: 0-2000 mg/Nm, NOx: 0-2000 mg/Nm
- Power Supply
- 230V AC 10%, 50 Hz
- Usage
- Industrial emission stack monitoring
- Capacity
- Multi-gas, simultaneous measurement
- Machine Weight
- Approx. 35 kg
- Test Speed
- Adjustable, up to 2 s/sample
- Control Mode
- Microprocessor based, auto & manual
- Sampling Method
- Heated extraction with dust filter
- Firmware Upgrade
- Remote upgradable via Ethernet
- Ambient Temperature Range
- -10C to +60C
- Calibration Interval
- Auto/Manual (User settable, recommended: monthly)
- Data Storage
- Up to 1 year (expandable)
- Installation Accessories
- Mounting kit, manual, calibration gas port included
- Alarm Output
- Relay (Configurable upper & lower limits)
- Sensor Type
- NDIR (Non-dispersive Infrared) & Electrochemical
- Physical Dimensions
- 550 mm x 400 mm x 250 mm
- Certificate Compliance
- Meets CPCB, USEPA, MCERTS standards
- Communication Protocols
- MODBUS RTU/TCP, optional GSM
- Sample Flow Rate
- 1-2 L/min
- Protection Category
- IP65 (Field unit)
About Continuous Emission Monitoring System
PSGM-1-D-AGS (OCEMS)
PSGM-1-D-AGS (CEMS-C)Online Continuous Emissions Monitoring Systemcan monitor gases, including SO2, NOx, O2, dust, humidity, temperature, pressure, flow parameters, etc. In addition, also can monitor gases for a particular occasion such as HCI, HF, CO, CO2, NH3, H2S, Cl2, VOC, etc.
PRIMA is the only high and new technology Indian company witha full set of intellectual property rights of flue gas monitoring. Its independent research and development products include ultraviolet flue gas analyzer, dust monitor, temperature pressure flow, humidity meter, HCI analyzer, HF analyzer, pretreatment system, monitoring software, etc.
Advanced Multi-Gas Sensing and Data Handling
Leveraging NDIR and electrochemical sensors, this system delivers accurate, simultaneous monitoring of critical gases like SO2, NOx, CO, and O2. Data logging is robust, storing up to one year of information and supporting seamless data transfer via MODBUS, Ethernet, and optional GSM. The 7-inch touch display offers intuitive navigation and system status at a glance.
Rugged, Reliable, and Simple Integration
Crafted for industrial environments, the field unit boasts IP65 protection against dust and moisture. The wall or flange mounting options, along with precise engineering, ensure compatibility with stacks up to 120 meters high. Automated calibration, remote firmware upgrades, and a full suite of mounting kit and manuals simplify installation and ongoing maintenance.
High Compliance and Remote Monitoring Benefits
Fully compliant with CPCB, USEPA, and MCERTS standards, the monitoring system guarantees regulatory adherence. Remote monitoring, self-diagnostics, and configurable alarm outputs reduce operator workload and downtime, while automatic data recording ensures consistent emissions documentation for audits or reporting requirements.
FAQ's of Continuous Stack Gas Emission Monitoring System:
Q: How does the Continuous Stack Gas Emission Monitoring System measure gas concentrations?
A: The system uses a combination of NDIR (Non-dispersive Infrared) and electrochemical sensors to detect and measure gas concentrations such as SO2, NOx, CO, and O2 directly from industrial emissions. It features a heated extraction sampling method with an integrated dust filter to ensure sample accuracy.Q: What gases can be monitored, and can the measurement ranges be customized?
A: The standard system measures SO2, NOx, CO, and O2 within typical ranges of 0-2000 mg/Nm3 for each gas. Measurement ranges and gas types can be customized based on industry requirements.Q: When should the system be calibrated, and what are the available calibration options?
A: Calibration can be set to occur either automatically or manually, according to user preference. Monthly calibration is recommended to maintain high accuracy as per regulatory standards. A calibration gas port and guided manual are provided for ease of calibration.Q: Where can this monitoring system be used, and what industries benefit most from it?
A: The system is suitable for continuous stack emission monitoring in industries such as cement, thermal power, steel, and other large-scale manufacturing facilities. It can be installed on stacks up to 120 meters in height, providing compliance with environmental regulations.Q: What is the process for installing the monitoring system on-site?
A: Installation is simplified with a mounting kit, manual, and calibration gas port included. The field unit is designed for wall or flange mounting, and connects via customizable DN65 port. Power supply requirements are 230V AC 10%, 50 Hz. Physical integration with stack and network systems is straightforward.Q: How does the data storage and remote monitoring function benefit operators?
A: Data from multiple gases is logged for up to a year (expandable), ensuring robust record-keeping. Operators can access, analyze, and download data remotely via Ethernet, MODBUS RTU/TCP, or optional GSM, making the system ideal for centralized monitoring and streamlined regulatory reporting.Q: What are the main benefits of using this Continuous Stack Gas Emission Monitoring System?
A: Key benefits include real-time, accurate emissions monitoring, automated compliance with CPCB, USEPA, MCERTS standards, reduced manual intervention through self-diagnostics and automatic calibration, and improved data accessibility via remote monitoring technologies.
